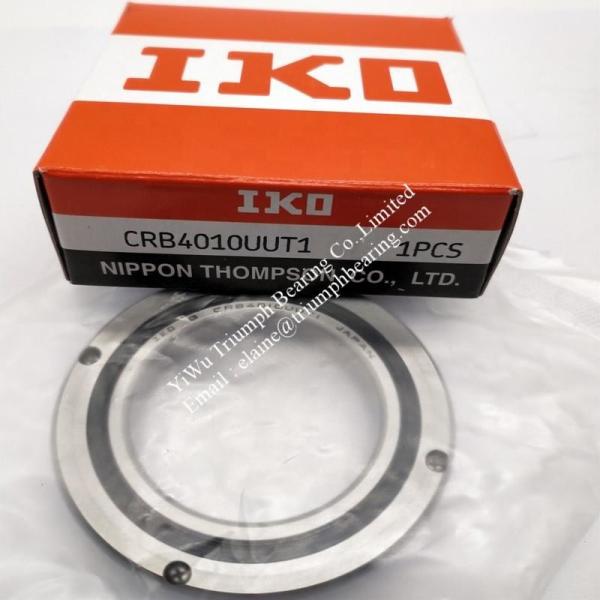

Name: IKO Cross Roller Bearings CRB4010UUT1
Brand: IKO
Price: 1 USD

Ask Lasest Price
Brand Name :	IKO
Model Number :	CRB4010UUT1
Payment Terms :	PayPal , Western Union, T/T, MoneyGram
Delivery Time :	1 day upon your payment

Add to Cart

IKO Cross roller bearing relative series

shaft diameter (mm)	Identification number		Main dimensions(mm)				Mounting dimensions (mm)		CRBC		CRB		Weight
shaft diameter (mm)	With cage	Full Complement	inner ring d	outer diameter D	width B	Chamfer (min)	da	Da	Basic dynamic load rating C (KN)	Basic static load rating Co (KN)	Basic dynamic load rating C (KN)	Basic static load rating Co (KN)	(Kg)
40	CRBC 4010	CRB 4010	40	65	10	0.3	44	54	4.28	5.14	5.98	8.04	0.15
50	CRBC 5013	CRB 5013	50	80	13	0.6	55	71	10.7	12.6	14.2	18.4	0.29
60	CRBC 6013	CRB 6013	60	90	13	0.6	64	81	11.6	14.6	15.4	21.5	0.33
70	CRBC 7013	CRB 7013	70	100	13	0.6	75	91	12.3	16.7	17	25.5	0.38
80	CRBC 8016	CRB 8016	80	120	16	0.6	86	107	18.2	25.5	24.3	37.5	0.74
90	CRBC 9016	CRB 9016	90	130	16	1	98	118	19.4	28.6	25.9	42.1	0.81
100	CRBC10020	CRB 10020	100	150	20	1	108	134	31.5	45.1	39.4	61.1	1.45
110	CRBC11020	CRB 11020	110	160	20	1	118	144	33.5	50.7	41.2	66.7	1.56
120	CRBC 12025	CRB 12025	120	180	25	1.5	132	164	47.7	70.5	59.9	95.4	2.62
130	CRBC13025	CRB 13025	130	190	25	1.5	140	172	49.2	74.8	61	99.8	2.82
140	CRBC 14025	CRB 14025	140	200	25	1.5	151	183	50.7	79.2	64.1	108	2.96
