TIMKEN Double Row Angular Contact Ball Bearings 3308 -2RS

Ask Lasest Price
Brand Name :	TIMKEN
Model Number :	3308 -2RS
Payment Terms :	PayPal , Western Union, T/T, MoneyGram
Delivery Time :	1 day upon your payment

Add to Cart

Product Details
Company Profile

TIMKEN Double Row Angular Contact Ball Bearings 3308 -2RS

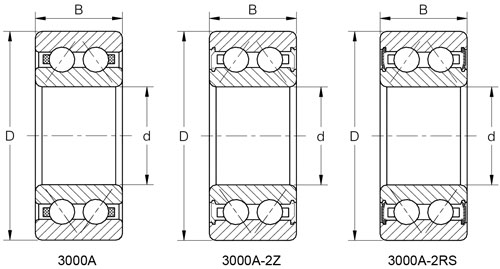

基本尺寸(mm) Principal Dimensions			型号 Designation	额定负荷(kN) Basic Load Ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷Cr Dynamic	静负Cor Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
30	72	30.2	3306A	37.2	25.9	6000	8000	0.590
	72	30.2	3306A-2RS	37.2	25.9	6000	-	0.590
	72	30.2	3306A-2Z	37.2	25.9	6000	-	0.590
35	47	10	3807A	6.1	6.2	8500	10000	0.035
	47	10	3807A-2RS	6.1	6.2	8500	-	0.035
	47	10	3807A-2Z	6.1	6.2	8500	-	0.035
	55	15	3907A	12.9	11.3	8000	9500	0.138
	55	15	3907A-2RS	12.9	11.3	8000	-	0.138
	55	15	3907A-2Z	12.9	11.3	8000	-	0.138
	62	20	3007A	24.2	20.4	6500	8500	0.240
	62	20	3007A-2RS	24.2	20.4	6500	-	0.240
	62	20	3007A-2Z	24.2	20.4	6500	-	0.240
	72	27	3207A	30.4	23.5	5600	7500	0.510
	72	27	3207A-2RS	30.4	23.5	5600	-	0.510
	72	27	3207A-2Z	30.4	23.5	5600	-	0.510
	80	34.9	3307A	46.1	35.3	5300	7000	0.820
	80	34.9	3307A-2RS	46.1	35.3	5300	-	0.820
	80	34.9	3307A-2Z	46.1	35.3	5300	-	0.820
40	52	10	3808A	6.4	6.9	7000	8500	0.040
	52	10	3808A-2RS	6.4	6.9	7000	-	0.040
	52	10	3808A-2Z	6.4	6.9	7000	-	0.040
	62	16	3908A	17.4	15.8	6500	8000	0.158
	62	16	3908A-2RS	17.4	15.8	6500	-	0.158
	62	16	3908A-2Z	17.4	15.8	6500	-	0.158
	68	21	3008A	24.5	20.8	6000	7800	0.279
	68	21	3008A-2RS	24.5	20.8	6000	-	0.279
	68	21	3008A-2Z	24.5	20.8	6000	-	0.279
	80	30.2	3208A	40.8	30.2	5300	7000	0.640
	80	30.2	3208A-2RS	40.8	30.2	5300	-	0.640
	80	30.2	3208A-2Z	40.8	30.2	5300	-	0.640
	90	36.5	3308A	54.9	40.1	4800	6300	1.060
	90	36.5	3308A-2RS	54.9	40.1	4800	-	1.060
	90	36.5	3308A-2Z	54.9	40.1	4800	-	1.060
45	58	10	3809A	6.7	7.7	6300	7000	0.055
	58	10	3809A-2RS	6.7	7.7	6300	-	0.055
	58	10	3809A-2Z	6.7	7.7	6300	-	0.055

■Double row angular contact bearing

TIMKEN Double Row Angular Contact Ball Bearings 3308 -2RS

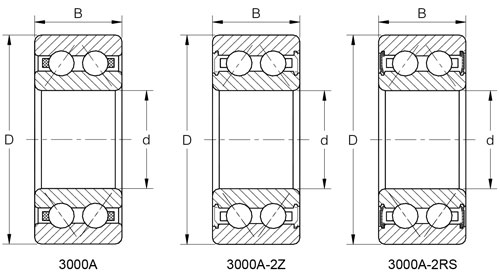

基本尺寸(mm) Principal Dimensions			型号 Designation	额定负荷(kN) Basic Load Ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷Cr Dynamic	静负荷Cor Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
45	68	16	3909A	17.9	17.2	6000	6800	0.183
	68	16	3909A-2RS	17.9	17.2	6000	-	0.183
	68	16	3909A-2Z	17.9	17.2	6000	-	0.183
	75	23	3009A	39.3	36.4	5600	6200	0.364
	75	23	3009A-2RS	39.3	36.4	5600	-	0.364
	75	23	3009A-2Z	39.3	36.4	5600	-	0.364
	85	30.2	3209A	42.8	34.5	4800	6300	0.720
	85	30.2	3209A-2RS	42.8	34.5	4800	-	0.720
	85	30.2	3209A-2Z	42.8	34.5	4800	-	0.720
	100	39.7	3309A	72.1	52.0	4300	5600	1.240
	100	39.7	3309A-2RS	72.1	52.0	4300	-	1.240
	100	39.7	3309A-2Z	72.1	52.0	4300	-	1.240
50	65	12	3810A	7.0	8.4	6000	7500	0.075
	65	12	3810A-2RS	7.0	8.4	6000	-	0.075
	65	12	3810A-2Z	7.0	8.4	6000	-	0.075
	72	16	3910A	19.1	19.6	5800	7200	0.189
	72	16	3910A-2RS	19.1	19.6	5800	-	0.189
	72	16	3910A-2Z	19.1	19.6	5800	-	0.189
	80	23	3010A	42.3	41.9	5300	6600	0.395
	80	23	3010A-2RS	42.3	41.9	5300	-	0.395
	80	23	3010A-2Z	42.3	41.9	5300	-	0.395
	90	30.2	3210A	43.2	35.3	4500	6000	0.780
	90	30.2	3210A-2RS	43.2	35.3	4500	-	0.780
	90	30.2	3210A-2Z	43.2	35.3	4500	-	0.780
	110	44.4	3310A	84.9	62.6	4000	5300	1.960
	110	44.4	3310A-2RS	84.9	62.6	4000	-	1.960
	110	44.4	3310A-2Z	84.9	62.6	4000	-	1.960
55	72	13	3811A	12.8	14.4	5500	6500	0.010
	72	13	3811A-2RS	12.8	14.4	5500	-	0.010
	72	13	3811A-2Z	12.8	14.4	5500	-	0.010
	80	19	3911A	20.0	21.7	5300	6200	0.282
	80	19	3911A-2RS	20.0	21.7	5300	-	0.282
	80	19	3911A-2Z	20.0	21.7	5300	-	0.282
	90	26	3011A	43.7	44.7	4800	5800	0.581
	90	26	3011A-2RS	43.7	44.7	4800	-	0.581
	90	26	3011A-2Z	43.7	44.7	4800	-	0.581

■Double row angular contact bearing

TIMKEN Double Row Angular Contact Ball Bearings 3308 -2RS

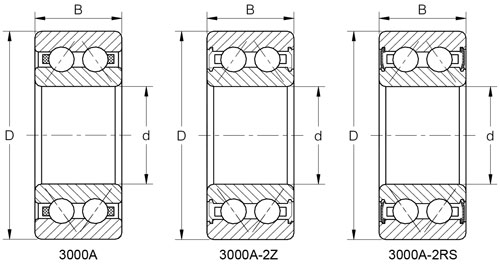

基本尺寸(mm) Principal Dimensions			型号 Designation	额定负荷(kN) Basic Load Ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷Cr Dynamic	静负荷Cor Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
55	100	33.3	3211A	53.9	47.2	4000	5300	1.030
	100	33.3	3211A-2RS	53.9	47.2	4000	-	1.030
	100	33.3	3211A-2Z	53.9	47.2	4000	-	1.030
	120	49.2	3311A	106.3	82.0	3600	4800	2.400
	120	49.2	3311A-2RS	106.3	82.0	3600	-	2.400
	120	49.2	3311A-2Z	106.3	82.0	3600	-	2.400
60	78	14	3812A	13.6	16.2	5000	5500	0.140
	78	14	3812A-2RS	13.6	16.2	5000	-	0.140
	78	14	3812A-2Z	13.6	16.2	5000	-	0.140
	85	19	3912A	21.0	23.8	4800	5300	0.303
	85	19	3912A-2RS	21.0	23.8	4800	-	0.303
	85	19	3912A-2Z	21.0	23.8	4800	-	0.303
	95	26	3012A	47.2	53.4	4400	5000	0.621
	95	26	3012A-2RS	47.2	53.4	4400	-	0.621
	95	26	3012A-2Z	47.2	53.4	4400	-	0.621
	110	36.5	3212A	61.3	52.6	3800	5000	1.400
	110	36.5	3212A-2RS	61.3	52.6	3800	-	1.400
	110	36.5	3212A-2Z	61.3	52.6	3800	-	1.400
	130	54.0	3312A	121.4	95.1	3400	4500	3.240
	130	54.0	3312A-2RS	121.4	95.1	3400	-	3.240
	130	54.0	3312A-2Z	121.4	95.1	3400	-	3.240
65	85	15	3813A	15.1	18.3	4700	5200	0.182
	85	15	3813A-2RS	15.1	18.3	4700	-	0.182
	85	15	3813A-2Z	15.1	18.3	4700	-	0.182
	90	19	3913A	21.4	24.8	4500	5000	0.324
	90	19	3913A-2RS	21.4	24.8	4500	-	0.324
	90	19	3913A-2Z	21.4	24.8	4500	-	0.324
	100	26	3013A	49.5	59.2	4000	4800	0.661
	100	26	3013A-2RS	49.5	59.2	4000	-	0.661
	100	26	3013A-2Z	49.5	59.2	4000	-	0.661
	120	38.1	3213A	73.4	66.6	3400	4500	1.840
	120	38.1	3213A-2RS	73.4	66.6	3400	-	1.840
	120	38.1	3213A-2Z	73.4	66.6	3400	-	1.840
	140	58.7	3313A	137.5	109.6	2800	3700	3.900
	140	58.7	3313A-2RS	137.5	109.6	2800	-	3.900
	140	58.7	3313A-2Z	137.5	109.6	2800	-	3.900

■Double row angular contact bearing

TIMKEN Double Row Angular Contact Ball Bearings 3308 -2RS

基本尺寸(mm) Principal Dimensions			型号 Designation	额定负荷(kN) Basic Load Ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷Cr Dynamic	静负荷Cor Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
70	90	15	3814A	18.0	21.9	4400	4800	0.190
	90	15	3814A-2RS	18.0	21.9	4400	-	0.190
	90	15	3814A-2Z	18.0	21.9	4400	-	0.190
	100	23	3914A	25.8	30.0	4000	4600	0.516
	100	23	3914A-2RS	25.8	30.0	4000	-	0.516
	100	23	3914A-2Z	25.8	30.0	4000	-	0.516
	110	30	3014A	54.2	58.9	3600	4400	0.950
	110	30	3014A-2RS	54.2	58.9	3600	-	0.950
	110	30	3014A-2Z	54.2	58.9	3600	-	0.950
	125	39.7	3214A	80.5	73.8	3200	4300	1.980
	125	39.7	3214A-2RS	80.5	73.8	3200	-	1.980
	125	39.7	3214A-2Z	80.5	73.8	3200	-	1.980
	150	63.5	3314A	154.5	125.1	2800	3800	4.700
	150	63.5	3314A-2RS	154.5	125.1	2800	-	4.700
	150	63.5	3314A-2Z	154.5	125.1	2800	-	4.700
75	95	15	3815A	16.0	20.3	4200	4700	0.224
	95	15	3815A-2RS	16.0	20.3	4200	-	0.224
	95	15	3815A-2Z	16.0	20.3	4200	-	0.224
	105	23	3915A	26.0	31.3	3800	4300	0.546
	105	23	3915A-2RS	26.0	31.3	3800	-	0.546
	105	23	3915A-2Z	26.0	31.3	3800	-	0.546
	115	30	3015A	57.7	66.5	3400	4000	1.003
	115	30	3015A-2RS	57.7	66.5	3400	-	1.003
	115	30	3015A-2Z	57.7	66.5	3400	-	1.003
	130	41.3	3215A	87.9	81.4	3000	3600	2.010
	130	41.3	3215A-2RS	87.9	81.4	3000	-	2.010
	130	41.3	3215A-2Z	87.9	81.4	3000	-	2.010
	160	68.3	3315A	171.4	134.8	2600	3200	6.300
	160	68.3	3315A-2RS	171.4	134.8	2600	-	6.300
	160	68.3	3315A-2Z	171.4	134.8	2600	-	6.300
80	140	44.4	3216A	103.7	97.5	2800	3600	2.480
	140	44.4	3216A-2RS	103.7	97.5	2800	-	2.480
	140	44.4	3216A-2Z	103.7	97.5	2800	-	2.480
	170	68.3	3316A	190.1	151.7	2400	3400	7.210
	170	68.3	3316A-2RS	190.1	151.7	2400	-	7.210
	170	68.3	3316A-2Z	190.1	151.7	2400	-	7.210

■Double row angular contact bearing

TIMKEN Double Row Angular Contact Ball Bearings 3308 -2RS

基本尺寸(mm) Principal Dimensions			型号 Designation	额定负荷(kN) Basic Load Ratings		极限转速(rpm) Limited Speed		重量(kg) Weight ≈
d	D	B	型号 Designation	动负荷Cr Dynamic	静负荷Cor Static	脂润滑 Grease	油润滑 Oil	重量(kg) Weight ≈
85	150	49.2	3217A	111.8	106.4	2400	3500	3.200
	150	49.2	3217A-2RS	111.8	106.4	2400	-	3.200
	150	49.2	3217A-2Z	111.8	106.4	2400	-	3.200
	180	73	3317A	189.4	234.5	2200	3200	8.300
	180	73	3317A-2RS	189.4	234.5	2200	-	8.300
	180	73	3317A-2Z	189.4	234.5	2200	-	8.300
90	160	52.4	3218A	111.8	106.4	2400	3200	4.500
	160	52.4	3218A-2RS	111.8	106.4	2400	-	4.500
	160	52.4	3218A-2Z	111.8	106.4	2400	-	4.500

TIMKEN Double Row Angular Contact Ball Bearings 3308 -2RS
