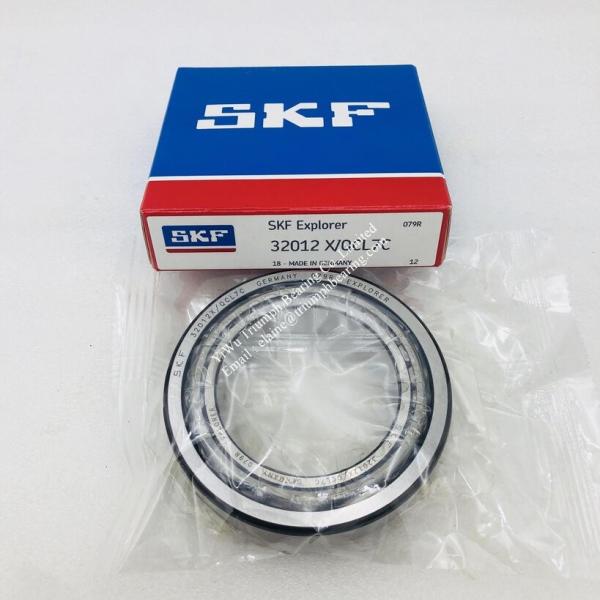

32012X/QCL7C Tapered Roller Bearing 60x95x23mm

taper roller bearings have the logarithmic contact profile that provides optimum stress distribution over the roller/raceway contacts. The special design of the sliding surfaces of the guide flange and large roller ends considerably promote lubricant film formation in the roller end/flange contacts. The resulting benefits include increased operational reliability and reduced sensitivity to misalignment.

Principal dimensions:
Inside diameter d: 60mm
Outside diameter D: 95mm
Width T: 23mm

Basic load ratings:
Dynamic C: 95kN
Static Co: 122kN

Fatigue load limit Pu: 13,4kN

Speed ratings:
Reference speed: 5 300 r/min
Limiting speed: 6 700 r/min

Mass: 0.59kg

Dimensions:
d1: 77,8mm
B: 23mm
C: 17,5mm
r1,2 min: 1,5mm
r3,4 min: 1,5mm
a: 21mm
